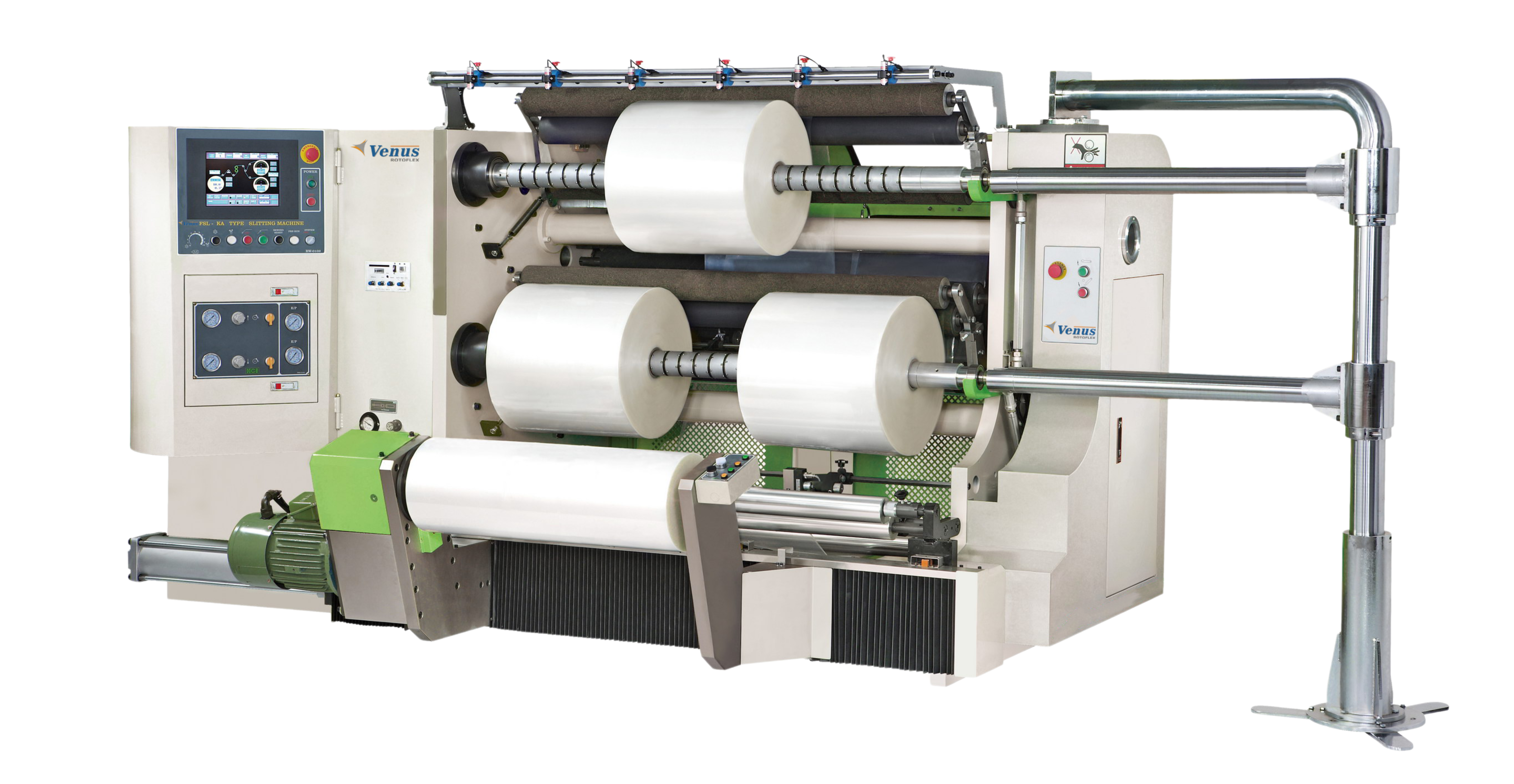

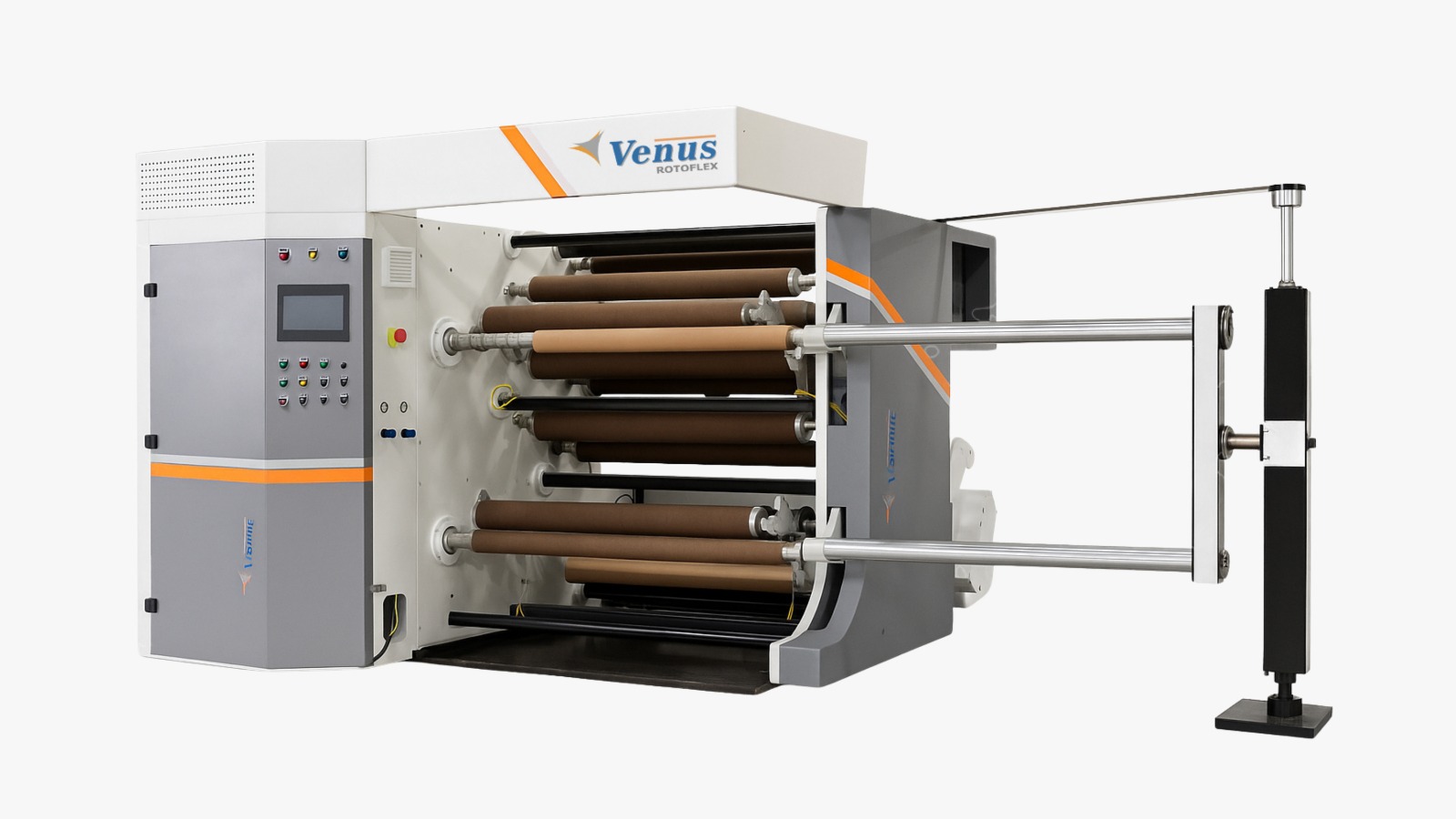

Differentiation Winding Shaft Slitter Rewinder Machine

Servo-driven slitter rewinder Differential winding technology. The machine is built with differential winding technology with perfect integration of a new generation of electronics and an ergonomically designed operating system. High productivity, easy operation, and the ability to handle various flexible films, paper, and laminates are the key features.

Specifications

Speed 400 mpm
Maximum Web Width 1300mm (1600mm optional)
Minimum Slit Width 50 mm (25 mm* Optional)
Rewinder Core ID 3" (6" Optional)
Unwinder Core ID 3" 6"
Unwindewr Diameter 1000 mm
Perent Roll Weight 800 Kgs
Slitter Rewinder
Machine 2
Machine 3
Line diagram will be here.
